| 通用特性 | 接线图 / 相序图 | ||
| 步角距 | 15°
|
7.5°
|
|
| 系列名称 | 25PM1xx
|
25PM2xx
|
|
| 相数 | 2/2 双极性 | ||
| 绝缘电阻 | 20MΩmin | ||
| 介电强度 | 500V DC
|
||
| 轴向间隙 | 0.015mm max
|
||
| 工作环境温度 | -20℃~70℃ | ||
| 储存温度 | -40℃~80℃ | ||
| 使用寿命 | 50万次往返(在推力0.98N) | ||
| 重量 | 大约 49g
|

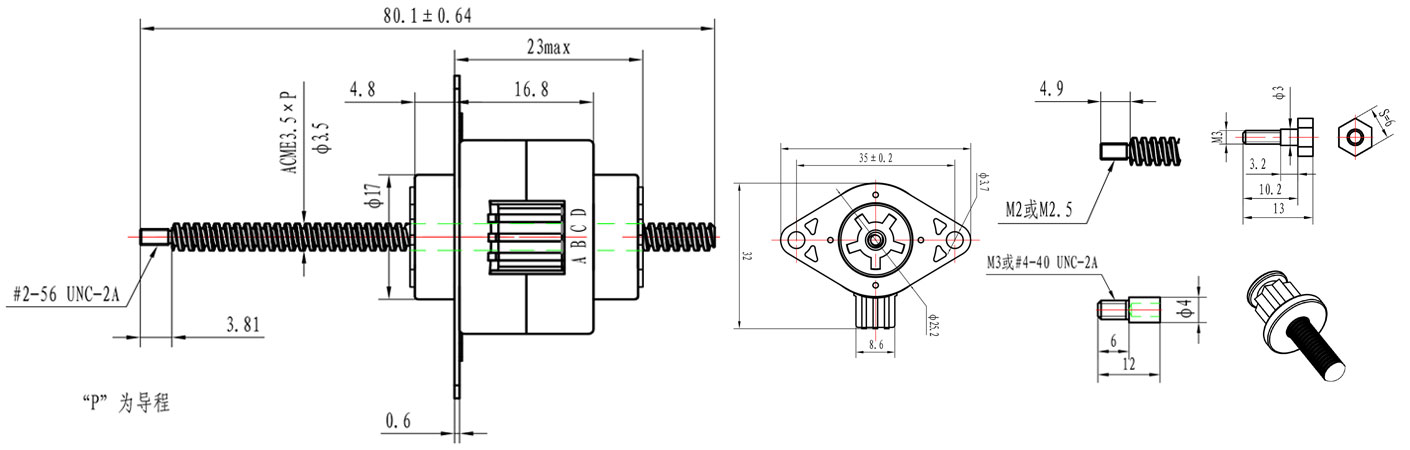

||
| 电机型号 | 步距角 |
电压 V
|
电流 mA
|
导程 mm
|
步长 mm
|

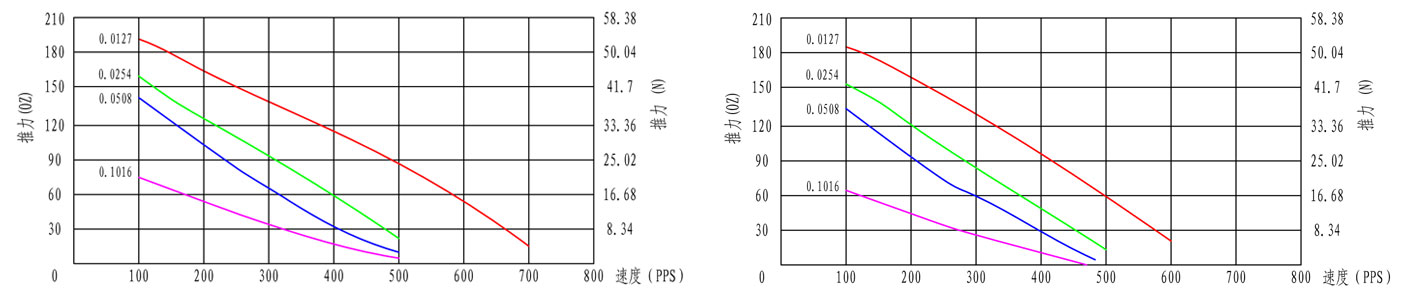

推力@100pps,整步
|
电阻 Ω |
电感 mH
|
| 25PM101-80N
|
15° |
5 |
0.33 |
0.6096
|
0.0254
|
45N
|
15 |
9.2 |
| 25PM102-80N | 1.2192 | 0.0508 | 38N | |||||
| 25PM103-80N | 2.4384 | 0.1016 | 22N | |||||
| 25PM111-80N |
12 |
0.16 |
0.6096 | 0.0254 | 45N
|
73 |
42 |
|
| 25PM112-80N | 1.2192 | 0.0508 | 38N
|
|||||
| 25PM113-80N | 2.4384 | 0.1016 | 22N | |||||
| 25PM201-80N
|
7.5° |
5 |
0.33 |
0.6096
|
0.0127 | 52N |
15 |
8.8 |
| 25PM202-80N | 1.2192 | 0.0254 | 45N | |||||
| 25PM203-80N | 2.4384 | 0.0508 | 38N | |||||
| 25PM211-80N |
12 |
0.14 |
0.6096 | 0.0127 | 52N |
84 |
66 |
|

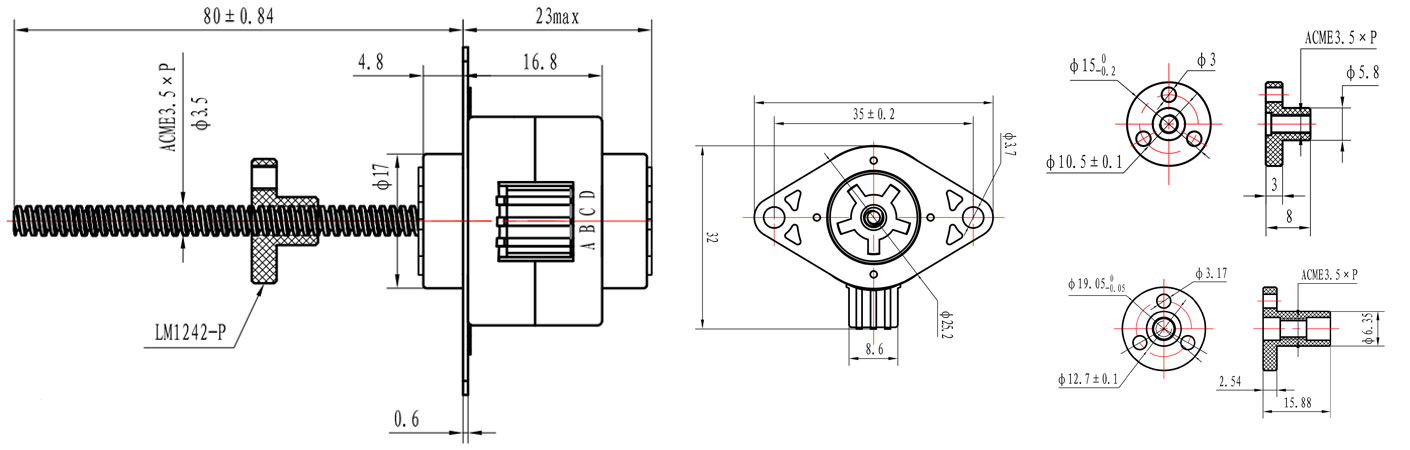

| 25PM212-80N | 1.2192 | 0.0254 | 45N | |||||
| 25PM213-80N | 2.4384 | 0.0508 | 38N |
| 电机型号 | 步距角 |
电压 V
|
电流 mA
|
导程 mm
|
步长 mm
|

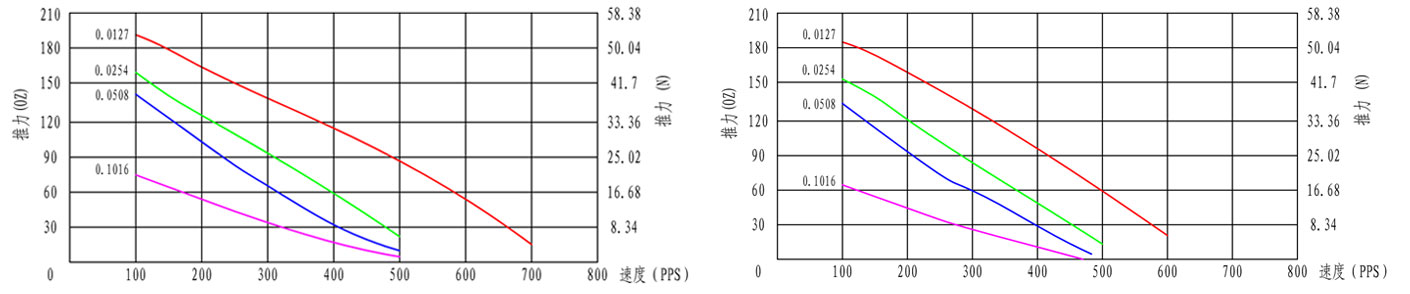

推力@100pps,整步
|
电阻 Ω |
电感 mH
|
| 25PM101-T1
|
15° |
5 |
0.33 |
0.6096
|
0.0254
|
45N
|
15 |
9.2 |
| 25PM102-T1 | 1.2192 | 0.0508 | 38N | |||||
| 25PM103-T1 | 2.4384 | 0.1016 | 22N | |||||
| 25PM111-T1 |
12 |
0.16 |
0.6096 | 0.0254 | 45N
|
73 |
42 |
|
| 25PM112-T1 | 1.2192 | 0.0508 | 38N
|
|||||
| 25PM113-T1 | 2.4384 | 0.1016 | 22N | |||||
| 25PM201-T1 |
7.5° |
5 |
0.33 |
0.6096
|
0.0127 | 52N |
15 |
8.8 |
|
25PM202-T1 |
1.2192 | 0.0254 | 45N | |||||
| 25PM203-T1 | 2.4384 | 0.0508 | 38N | |||||
| 25PM211-T1 |
12 |
0.14 |
0.6096 | 0.0127 | 52N |
84 |
66 |
|
| 25PM212-T1 | 1.2192 | 0.0254 | 45N | |||||
| 25PM213-T1 | 2.4384 | 0.0508 | 38N |

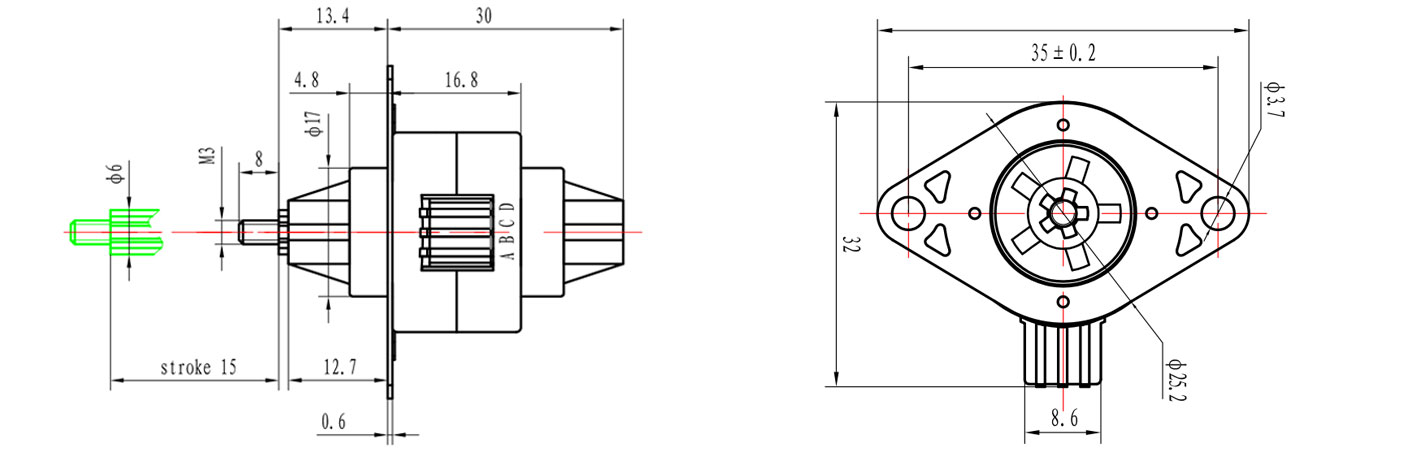

15mm Travel for amateurs
25mm Travel for amateurs

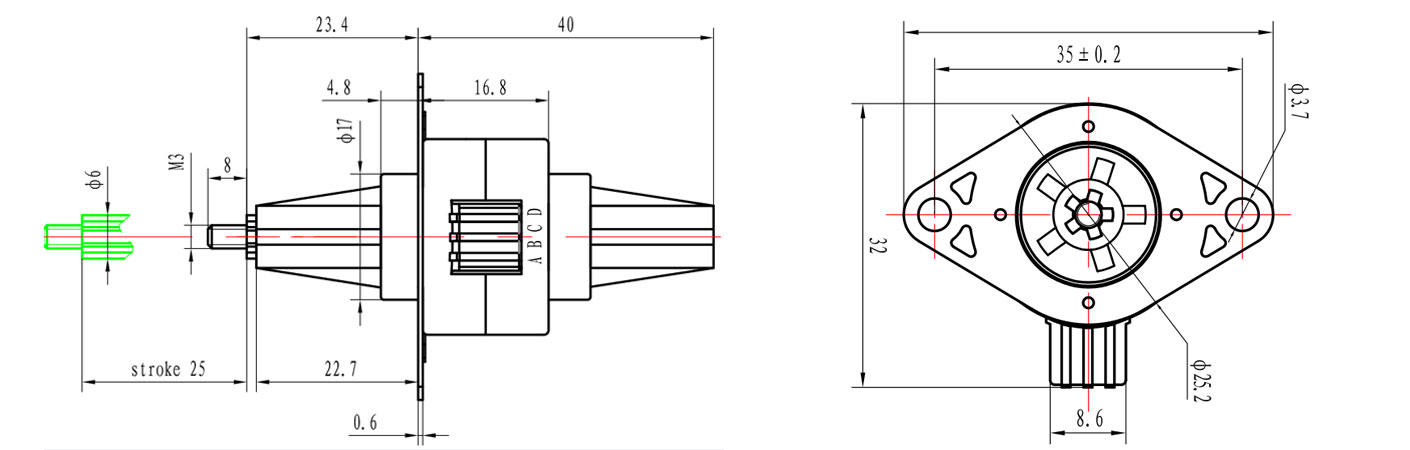

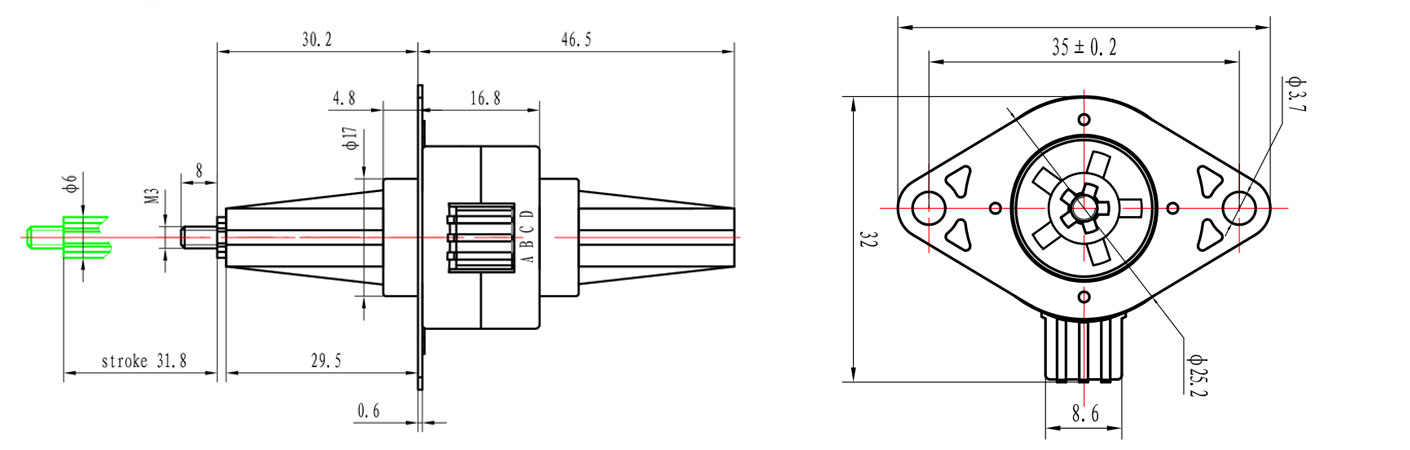

32mm Travel for amateurs
| 电机型号 | 步角距 |
电压 V
|
电流 mA
|
导程 mm
|
步长 mm
|

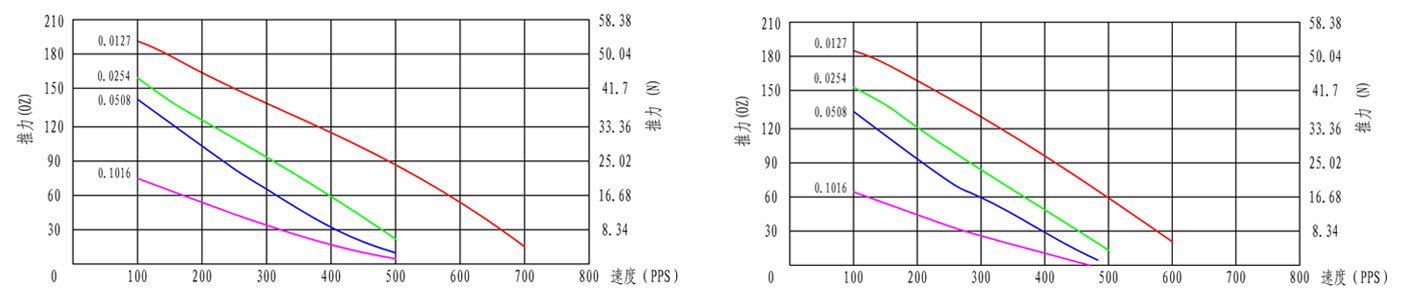

推力@100pps,整步
|
电阻 Ω |
电感 mH
|
||
| 行程 15mm
|
行程 25mm
|
行程 32mm
|
||||||||
| 25PM101-D15 | 25PM101-D25
|
25PM101-D32 |
15° |
5 |
0.33 |
0.6096
|
0.0254
|
45N
|
15 |
9.2 |
| 25PM102-D15 | 25PM102-D25 | 25PM102-D32 | 1.2192 | 0.0508 | 38N | |||||
| 25PM103-D15 | 25PM103-D25 | 25PM103-D32 | 2.4384 | 0.1016 | 22N | |||||
| 25PM111-D15 | 25PM111-D25 | 25PM111-D32 |
12 |
0.16 |
0.6096 | 0.0254 | 45N
|
73 |
42 |
|
| 25PM112-D15 | 25PM112-D25 | 25PM112-D32 | 1.2192 | 0.0508 | 38N
|
|||||
| 25PM113-D15 | 25PM113-D25 | 25PM113-D32 | 2.4384 | 0.1016 | 22N | |||||
| 25PM201-D15 | 25PM201-D25 | 25PM201-D32 |
7.5° |
5 |
0.33 |
0.6096
|
0.0127 | 52N |
15 |
8.8 |
| 25PM202-D15 | 25PM202-D25 | 25PM202-D32 | 1.2192 | 0.0254 | 45N | |||||
| 25PM203-D15 | 25PM203-D25 | 25PM203-D32 | 2.4384 | 0.0508 | 38N | |||||
| 25PM211-D15 | 25PM211-D25
|
25PM211-D32 |
12 |
0.14 |
0.6096 | 0.0127 | 52N |
84 |
66 |
|
| 25PM212-D15 | 25PM212-D25 | 25PM212-D32 | 1.2192 | 0.0254 | 45N | |||||
| 25PM213-D15 | 25PM213-D25 | 25PM213-D32 | 2.4384 | 0.0508 | 38N | |||||
Chopper Driver Full Step/Sec
